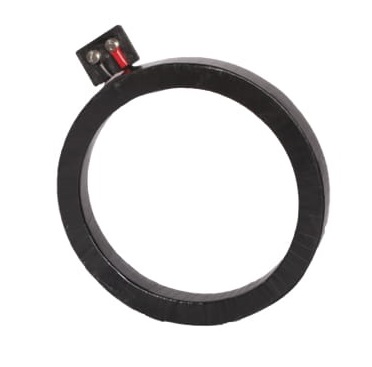

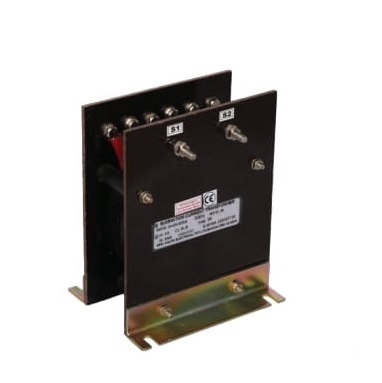

| Type | Wound Primary/Ring/Rectangular |
| Finishing | Tape Insulated |
| Highest Voltage for Equipment (kV) | 1.1kV |
| Rated Insulation Level (kV) | 1.1/4kVp |
| Rated Frequency (Hz) | 50-400Hz |
| Rated Primary Current (A) | Up to 25000A |
| Rated Secondary Current(A) | 5A or 1A |
| Accuracy class | 0.1, 0.2s, 0.2, 0.5s, 0.5, 1, 3, 5 |
| Instrument Safety Factor | <=5 (Depending on Accuracy Class) |
| Rated Burden (VA) | Up to 30VA (As Per Requirement) |
| Accuracy Class of Protection Core | 5P to 15P |
| Accuracy Limited Factor(ALF) | 5 to 30 |
| Special Protection(PS/PX) | VK=> ....v(As Per Requirement) |
| Short Time Thermal Current(STC) | Up to 40 kA at 0.5sec 1, sec or 3 sec |
| Number of Cores | 1-2-3-4-5 |
| Class of insulation | Class A |
| Applicable Standards | IS,IEC,ANSI,BS,etc. |
