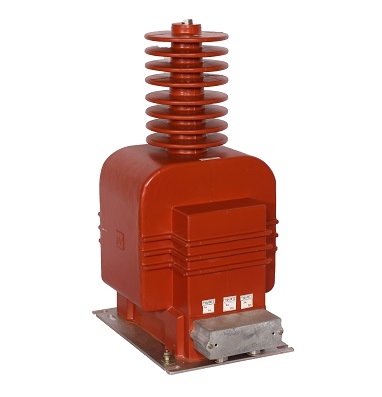

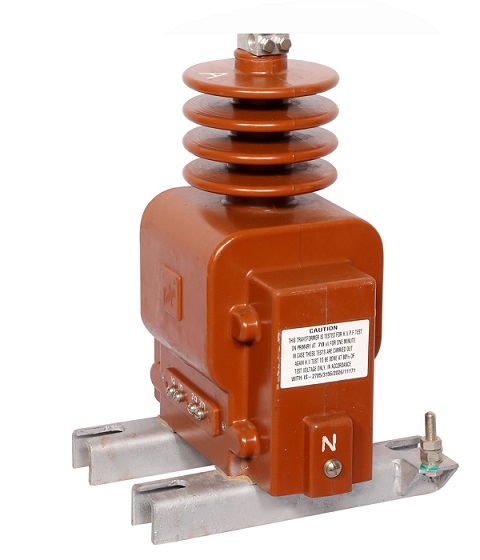

TECHNICAL SPECIFICATIONS

Application Outdoor
Casting Cycloaliphatic Epoxy Resin
Highest Voltage for Equipment (kV) Up to 36 kV
Rated Insulation Level (kV) Up to 36/70/170kVp
Rated Frequency (Hz) 50-400Hz
Rated Primary Voltage(V) Up to 33kV
Rated Secondary Voltage(V) 110V/RT3, 110V/3,
110V (As Per Requirement)
Accuracy class 0.1, 0.2, 0.5, 1, 3
Rated Burden (VA) Up to 500VA
Accuracy Class of Protection Core 3P to 6P
Number of Windings 1-2-3-4-5
Voltage Factor 1.2 Continuous/1.5 for 30 sec, 1.9 for 8 hours
Type of Earthing One End Earthed Type (E-N)
Applicable Standards IS,IEC,ANSI,BS,etc.
